Click for full size picture

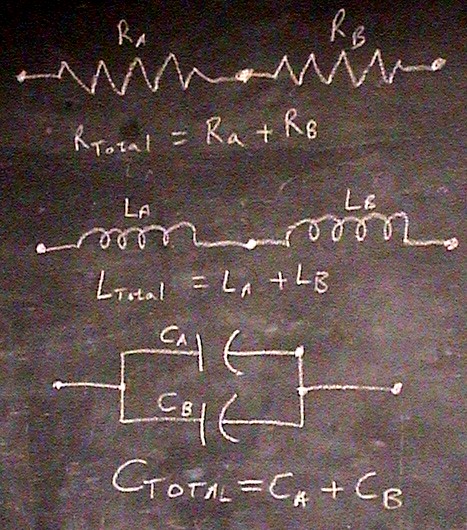

Resistance (in Ohms) simply sums for resistors in series.
Impedance (in Henries) simply sums for inductors in series (NOTE:this is not the case if there is mutual inductance between windings.).
Capacitance (in Farads, microfarads etc.) simply sums for capacitors in parallel (NOTE: this is in PARALLEL not series).
